icp® triaxial shock accelerometer, 1.0 mv/g, 5k g range, mechanically isolated and electrically filtered, 5-ft integral cable, no mating cable supplied

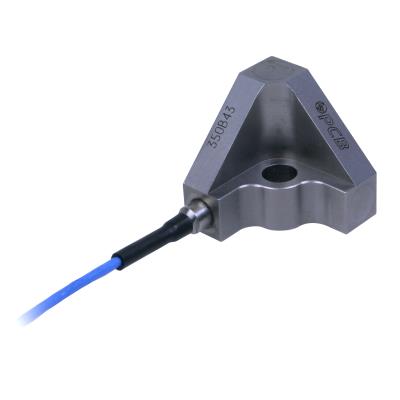

Triaxial ICP® Accelerometer

Model 350B44/NC

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
2	Call for Lead Time

ICP® Triaxial shock accelerometer, 1.0 mV/g, 5k g range, mechanically isolated and electrically filtered, 5-ft integral cable, no mating cable supplied

Sensitivity: (±30%)1.0 mV/g (.1 mV/(m/s²))
Measurement Range: ±5000 g pk (±49000 m/s² pk)
Frequency Range: (±1dB)0.4 to 10000 Hz
Electrical Connector: Integral Cable (Integral Cable)

Specification Notes

[1] Typical.
[2] Typical corner frequency for coupled electrical and mechanical filters.
[3] Electrical filter is a second order filter.
[4] Amplitude at resonance is +9 dB.
[1] Typical.
[5] Test performed on a shaker at 100Hz
[1] Typical.
[6] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±30 %)	1.0 mV/g	.1 mV/(m/s²)
Measurement Range	±5000 g pk	±49000 m/s² pk
Frequency Range (±1 dB)	0.4 to 10000 Hz	0.4 to 10000 Hz
Frequency Range (-3 dB)	0.2 to 25000 Hz	0.2 to 25000 Hz	[2]
Resonant Frequency	>50 kHz	>50 kHz
Electrical Filter Corner Frequency (3)	17 kHz	17 kHz	[1] [3]
Mechanical Filter Resonant Frequency	35 kHz	35 kHz	[1] [4]
Broadband Resolution (1)	0.04 g rms	0.39 m/s² rms	[1]
Non-Linearity (per 1000 g (9810 m/s²))	2.0 %	2.0 %
Transverse Sensitivity	≤7 %	≤7 %
Environmental
Overload Limit (Shock)	±50000 g pk	±490000 m/s² pk
Temperature Range (Operating)	-10 to +150 °F	-23 to +66 °C
Temperature Range (Storage)	-40 to +200 °F	-40 to +93 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[1] [5]
Base Strain Sensitivity	0.002 g/µε	0.02 (m/s²)/µε	[1]
Electrical
Excitation Voltage	20 to 30 VDC	20 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	8 to 14 VDC	8 to 14 VDC
Discharge Time Constant	1.0 to 2.0 sec	1.0 to 2.0 sec	[1]
Settling Time (within 10% of bias)	<10 sec	<10 sec
Electrical Isolation (Case)	>100000000 Ohm	>100000000 Ohm
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Height	1.02 in	26.0 mm
Size - Length	1.02 in	26.0 mm
Size - Width	1.02 in	26.0 mm
Weight (without cable)	0.95 oz	27 g	[1]
Electrical Connector	Integral Cable	Integral Cable
Electrical Connection Position	Side	Side
Cable Termination	1/4-28 4-Pin Jack	1/4-28 4-Pin Jack
Cable Length	5.0 ft	1.52 m
Cable Type	034 4-cond Shielded	034 4-cond Shielded
Mounting	Through Hole	Through Hole

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
034G05	4-conductor, low noise, shielded FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)	1
100-16040-40		1
100-6774-10		1
100-8994-40		1
ACS-14T		1
ACS-22T	Triaxial amplitude response calibration for shock accelerometer, 100 Hz to upper 1 dB frequency (max 15 kHz)	1
