pcb l&t reaction torque transducer, 2,000 in-lb/167 ft-lb (226 n-m) rated capacity, 50% static overload protection, 4-in (101.6 mm) steel flange

REACTION TORQUE SENSOR

Model 2301-01A

Add to Quote
  • IP

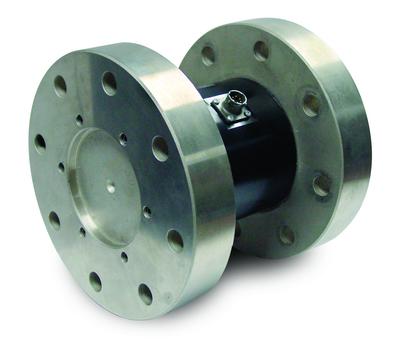

PCB L&T Reaction Torque Transducer, 2,000 in-lb/167 ft-lb (226 N-m) rated capacity, 50% static overload protection, 4-in (101.6 mm) Steel Flange

Cable <20ft: 8311-04-xxA, 8311-17-xxA and 8311-01-xxA

Cable >=20ft: 8311-05-xxA, 8311-18-xxA and 8311-02-xxA

  • Measurement Range: 2000 lbf-in (226 Nm)
  • Sensitivity: (±15%)2 mV/V (2 mV/V)
  • Mounting: Flange (5/16in Bolts) (Flange (M8 Bolts))
  • Size - Diameter: 4.00 in (101.6 mm)
  • Size - Length: 3.00 in (76.2 mm)
  • Torsional Stiffness: 370 klbf-in/radian (41.8 kN-m/radian)

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] Singularly applied, i.e. no other extraneous loads.
[4] Over compensated operating temperature range.
[5] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[6] See Drawing 26439 for Complete Dimensions

English: SI:
Performance
Measurement Range (Full Scale Capacity) 2000 lbf-in 226 Nm [1]
Sensitivity (±15 %) (output at rated capacity) 2 mV/V 2 mV/V [1]
Non-Linearity 0.1 % FS 0.1 % FS [2]
Hysteresis 0.1 % FS 0.1 % FS [2]
Non-Repeatability 0.02 % FS 0.02 % FS [2]
Resonant Frequency 1000 Hz 1000 Hz
Maximum Torque 3000 lbf-in 339 Nm
Environmental
Overload Limit (Axial Thrust) 2000 lbf 8900 N [3]
Overload Limit (Overhung Moment) 1000 lbf-in 113 Nm [3]
Overload Limit (Shear) 1000 lbf 4448 N [3]
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +70 to +170 °F +21 to +77 °C
Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0036 %Reading/°C [4]
Temperature Effect on Zero Balance (Maximum) ±0.002 %FS/°F ±0.0036 %FS/°C [2]
Electrical
Bridge Resistance 350 Ohm 350 Ohm
Excitation Voltage (Recommended) 10 VDC 10 VDC [5]
Insulation Resistance 5 GOhm 5 GOhm
Zero Balance ≤1 %RO ≤1 %RO
Output Polarity cw+ cw+
Physical
Size - Diameter 4.00 in 101.6 mm [6]
Size - Length 3.00 in 76.2 mm [6]
Weight 5.00 lb 2268 g
Mounting Flange (5/16in Bolts) Flange (M8 Bolts)
Torsional Stiffness 370 klbf-in/radian 41.8 kN-m/radian
Sensing Element Strain Gage Strain Gage
Housing Material Anodized Aluminum Anodized Aluminum
Sensor Material Plated Steel Plated Steel
Electrical Connector PT02E-10-6P PT02E-10-6P

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
181-012A Mating conn., 6-socket (F) w/strain relief for sensors with PT conn. PT06A-10-6S (SR) 1
