triaxial, lightweight (1.0 gm) miniature, adhesive mount, ceramic shear icp® accel., 10 mv/g, 0.25 cube, mini 4-pin connector

Triaxial ICP® Accelerometer

Model 356A09

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
33 Lead Time for 1-10 is 4 Wks.
Lead Time for 11-20 is 6 Wks.
  • CE
  • IP

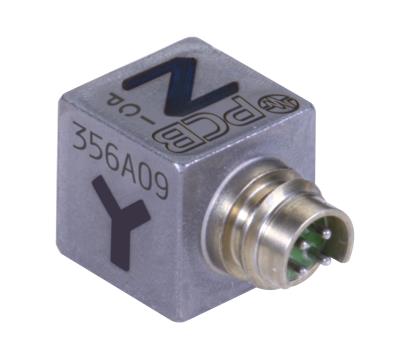

Triaxial, lightweight (1.0 gm) miniature, adhesive mount, ceramic shear ICP® accel., 10 mV/g, 0.25" cube, mini 4-pin connector

  • Sensitivity: (±20%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Electrical Connector: 8-36 4-Pin (8-36 4-Pin)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) (y or z axis) 2 to 8000 Hz 2 to 8000 Hz
Frequency Range (±5 %) (x axis) 2 to 5000 Hz 2 to 5000 Hz
Frequency Range (+1 dB) (x axis) ≥8 kHz ≥8 kHz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 22 to 30 VDC 22 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 9 to 16 VDC 9 to 16 VDC
Discharge Time Constant 0.24 to 1.0 sec 0.24 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 1200 µg/√Hz 11772 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 300 µg/√Hz 2943 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 30 µg/√Hz 294 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.25 in 6.35 mm
Size - Length 0.25 in 6.35 mm
Size - Width 0.25 in 6.35 mm
Weight 0.04 oz 1.0 gm [2]
Electrical Connector 8-36 4-Pin 8-36 4-Pin
Electrical Connection Position Side Side
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
034K10 4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
