link quartz force sensor, 25k lb comp., 8k lb tension, 18 pc/lb

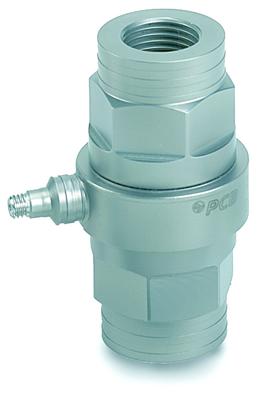

Charge Output Force Sensor

Model 234B

Add to Quote
  • IP

Link quartz force sensor, 25k lb comp., 8k lb tension, 18 pC/lb

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 8000 Hz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Mounting Thread: 5/8 - 18 Female (No Metric Equivalent)
  • Weight: 8.7 oz (246 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.

English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) ≤25000 lb ≤111.2 kN
Measurement Range (Tension) ≤8000 lb ≤35.59 kN
Maximum Static Force (Compression) 30000 lb 133.45 kN
Maximum Static Force (Tension) 10000 lb 44.48 kN
Upper Frequency Limit 8000 Hz 8000 Hz [2] [3]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance ≥32 pF ≥32 pF [4]
Insulation Resistance ≥1000000000000 Ohm ≥1000000000000 Ohm
Physical
Stiffness 6 lb/µin 1.05 kN/µm [4]
Size - Diameter 1.34 in 34.04 mm
Size - Height 2.50 in 63.5 mm
Weight 8.7 oz 246 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 5/8 - 18 Female No Metric Equivalent

* All specifications are at room temperature unless otherwise specified.

Optional Versions

(M) Metric Mount

English SI
Mounting Thread No English Equivalent M16 x 1.50 Female

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
