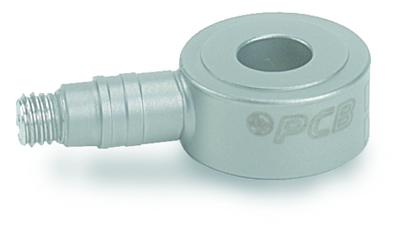

icp® quartz force ring, 1k lb comp., 5 mv/lb

Force Sensor, ICP®

Model 201B04

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-3 is 5 Wks.
  • CE
  • IP

ICP® quartz force ring, 1k lb comp., 5 mV/lb

  • Measurement Range: 1000 lb (4.448 kN)
  • Sensitivity: (±15%)5 mV/lb (1124 mV/kN)
  • Low Frequency Response: (-5%)0.001 Hz
  • Upper Frequency Limit: 90000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 5 mV/lb 1124 mV/kN
Measurement Range (Compression) 1000 lb 4.448 kN
Maximum Static Force (Compression) 6000 lb 26.69 kN
Broadband Resolution (1) 0.02 lb-rms 0.08896 N-rms [2]
Low Frequency Response (-5 %) 0.001 Hz 0.001 Hz [3]
Upper Frequency Limit 90000 Hz 90000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥700 sec ≥700 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Output Polarity (Compression) Positive Positive
Physical
Preload 400 lb 1.78 kN
Stiffness 12 lb/µin 2.1 kN/µm [2]
Size - Diameter 0.650 in 16.5 mm
Size - Height 0.310 in 7.9 mm
Size - Bolt Diameter 0.25 in 6 mm
Size - ID (Hole Diameter) 0.251 in 6.38 mm
Size - OD (Sensor) 0.650 in 16.51 mm
Size - Sensing Surface 0.50 in 12.7 mm
Weight 0.35 oz 10 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A11 Mounting stud, 10-32 x 0.730", BeCu for Models 201B01, 201B02, 201B03, 201B04, 201B05, 211B & 201B76 1
082B01 Anti-friction washer for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1
083B01 Pilot bushing for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1
M081A11 Mounting stud, M5x0.8 x 0.730", BeCu for Models 201B01, 201B02, 201B03, 201B04, 201B05, 211B & 201B76 1
M083B01 Pilot bushing for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connection Position Side
Electrical Connector Sealed Cable
