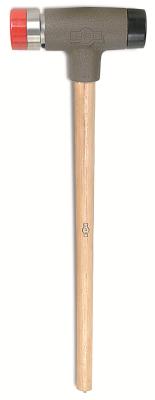

large-sledge impulse hammer w/force sensor & tips, 0 to 5k lbf, 1 mv/lbf (0.23 mv/n), 12-lb head.

Impact Hammer, ICP®

Model 086D50

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-2 is 10 Wks.
Lead Time for 3-5 is 12 Wks.
  • CE
  • IP

Large-sledge Impulse Hammer w/force sensor & tips, 0 to 5k lbf, 1 mV/lbf (0.23 mV/N), 12-lb head.

  • Sensitivity: (±15%)1 mV/lbf (0.23 mV/N)
  • Measurement Range: ±5000 lbf pk (±22240 N pk)
  • Hammer Mass: 12.1 lb (5.5 kg)

Specification Notes


[1] Typical.
[2] See PCB Declaration of Conformance PS136 for details.

English: SI:
Performance
Sensitivity (±15 %) 1 mV/lbf 0.23 mV/N
Measurement Range ±5000 lbf pk ±22240 N pk
Resonant Frequency ≥5 kHz ≥5 kHz
Non-Linearity ≤1 % ≤1 %
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm [1]
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant ≥2000 sec ≥2000 sec [1]
Physical
Sensing Element Quartz Quartz
Sealing Hermetic Hermetic
Hammer Mass 12.1 lb 5.5 kg
Head Diameter 3.0 in 7.6 cm
Tip Diameter 3.0 in 7.6 cm
Hammer Length 35 in 89 cm
Electrical Connection Position Bottom of Handle Bottom of Handle
Electrical Connector BNC Jack BNC Jack

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
084A32 Medium, red, 1/2-13 thread tip (for Model 086D50) 1
HCS-2 Calibration of Series 086B to 086D instrumented hammers only 1

Optional Versions


(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Output Bias Voltage 8.5 to 15 VDC
Output Bias Voltage 8.5 to 15 VDC
Output Bias Voltage 8.5 to 15 VDC
