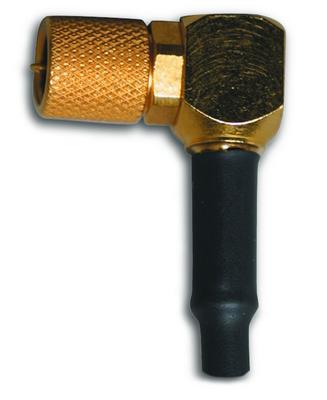

10-32 coaxial right angle plug

Cable Connector

Model AK

Add to Quote
  • IP

10-32 coaxial right angle plug

Protective Cap: 085A18


  • Connector Style: Coaxial
  • Connector Style: Right Angle
  • Connection Type: Plug (male pin)
  • Coupling Thread: 10-32 female
  • Temperature Range: -85 to 329 °F (-65 to 165 °C)

Specification Notes

English: SI:
Performance
Connector Style Coaxial Coaxial
Connector Style Right Angle Right Angle
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 10-32 female 10-32 female
Environmental
Temperature Range -85 to 329 °F -65 to 165 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance 1000 MOhm 1000 MOhm
Physical
Housing Material Brass Brass
Size - OD .25 in 6.4 mm
Size - Length .59 in 15 mm
Weight .15 oz 4.2 gm

* All specifications are at room temperature unless otherwise specified.
