din rail mount icp® signal conditioner, 24 vdc input

ICP® Sensor Signal Conditioner

Model 682A02

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-10 is 3 Wks.
Lead Time for 11-20 is 4 Wks.
  • IP

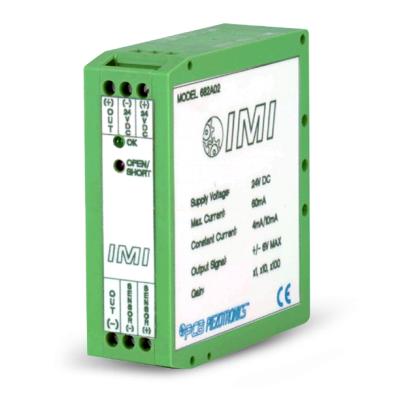

DIN rail mount ICP® signal conditioner, 24 VDC input

ICP Signal Conditioner, Din Rail mounted. 18 VDC excitation voltage, with internally jumper selectable excitation current and voltage gain.
  • DC Power: (±10%)24 VDC

Specification Notes


[1] 1Hz = 60 cpm (cycles per minute).
[2] Jumper selectable on internal circuit board.
[3] Typical.
[4] If unit is used in conjunction with a sensor having a bias over 13 VDC, full scale output may be affected or sensor may not power up.
[2] Jumper selectable on internal circuit board.
[5] Gain x1
[6] Gain x10
[7] Gain x100

English: SI:
Performance
Channels 1 1
Voltage Gain 1/10/100 1/10/100 [2]
Frequency Range (±1 dB) 60 to 6000000 cpm 1 to 100000 Hz [1]
Non-Linearity ≤2 % ≤2 %
Environmental
Temperature Range 32 to 158 °F 0 to 70 °C
Electrical
Power Required (Standard) DC Power DC Power
DC Power (±10 %) 24 VDC 24 VDC
DC Power ≤60 mA ≤60 mA
Excitation Voltage (To Sensor) ≤22 V ≤22 V [4]
Constant Current Excitation (±1 mA) (To Sensor) 4/10 mA 4/10 mA [2]
Spectral Noise (10 Hz) 0.8 µV/√Hz 0.8 µV/√Hz [3] [5]
Spectral Noise (100 Hz) 0.5 µV/√Hz 0.5 µV/√Hz [3] [5]
Spectral Noise (1 kHz) 0.5 µV/√Hz 0.5 µV/√Hz [3] [5]
Spectral Noise (10 kHz) 0.6 µV/√Hz 0.6 µV/√Hz [3] [5]
Broadband Electrical Noise (1 to 10 kHz) 50 µV 50 µV [3] [5]
Spectral Noise (10 Hz) 7.5 µV/√Hz 7.5 µV/√Hz [3] [6]
Spectral Noise (100 Hz) 3.6 µV/√Hz 3.6 µV/√Hz [3] [6]
Spectral Noise (1 kHz) 3.2 µV/√Hz 3.2 µV/√Hz [3] [6]
Spectral Noise (10 kHz) 6.0 µV/√Hz 6.0 µV/√Hz [3] [6]
Broadband Electrical Noise (1 to 10 kHz) 400 µV 400 µV [3] [6]
Spectral Noise (10 Hz) 80 µV/√Hz 80 µV/√Hz [3] [7]
Spectral Noise (100 Hz) 40 µV/√Hz 40 µV/√Hz [3] [7]
Spectral Noise (1 kHz) 32 µV/√Hz 32 µV/√Hz [3] [7]
Spectral Noise (10 kHz) 50 µV/√Hz 50 µV/√Hz [3] [7]
Broadband Electrical Noise (1 to 10 kHz) 3.5 mV 3.5 mV [3] [7]
Fuse 1 A 1 A
Physical
Electrical Connector (ICP® Sensor Input) Screw Terminals Screw Terminals
Electrical Connector (Output) Screw Terminals Screw Terminals
Electrical Connector (DC Power Input) Screw Terminals Screw Terminals
Mounting DIN Rail DIN Rail
Size - Height 3.1 in 78.7 mm
Size - Width 0.97 in 24.6 mm
Size - Depth 3.3 in 83.8 mm
Weight 0.194 lb 0.088 kg

* All specifications are at room temperature unless otherwise specified.
