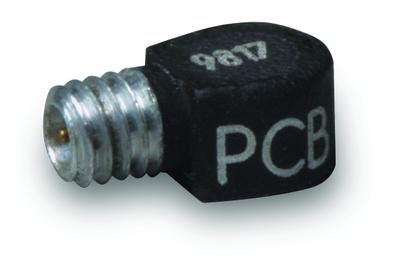

Miniature (0.16 gm), teardrop-style, charge output accel., 0.3 pC/g , 10k Hz, 3-56 conn.

  • Sensitivity: (±20%)0.35 pC/g (0.036 pC/(m/s²))
  • Measurement Range: ±1000 g pk (±9800 m/s² pk)
  • Frequency Range: (+5%)12000 Hz
  • Weight: 0.006 oz (0.16 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±20 %) 0.35 pC/g 0.036 pC/(m/s²)
Measurement Range ±1000 g pk ±9800 m/s² pk
Frequency Range (+5 %) 12000 Hz 12000 Hz [2]
Frequency Range (+10 %) 20000 Hz 20000 Hz [2]
Resonant Frequency ≥70 kHz ≥70 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range -100 to +350 °F -73 to +177 °C
Temperature Range -100 to +350 °F -100 to +350 °F
Temperature Response See Graph %/°F See Graph %/°F [3]
Electrical
Capacitance 140 pF 140 pF [3]
Insulation Resistance (at 70° F [21°C]) >10000000000 Ohm >10000000000 Ohm
Output Polarity Negative Negative
Electrical Isolation (Base) ≥100000000 Ohm ≥100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Aluminum Aluminum
Sealing Epoxy Epoxy
Size - Height 0.11 in 2.8 mm
Size - Diameter 0.16 in 4.1 mm
Size - Width 0.27 in 6.9 mm
Weight 0.006 oz 0.16 gm [3]
Electrical Connector 3-56 Coaxial Jack 3-56 Coaxial Jack
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
030A10 Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug 1
039A29 Removal tool (for Model 357A08) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
