low outgassing, triaxial, high sensitivity, ceramic shear icp® accel., 500 mv/g, 0.5 to 3k hz, titanium hsg, 4-pin conn.

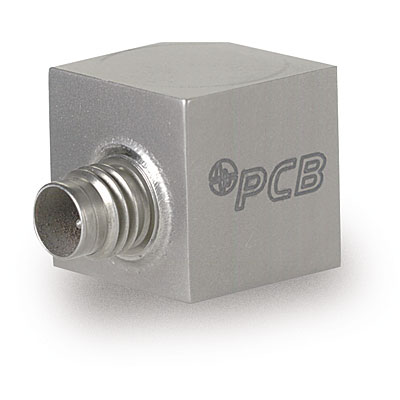

Triaxial ICP® Accelerometer

Model 356M132

Low Outgassing, Triaxial, high sensitivity, ceramic shear ICP® accel., 500 mV/g, 0.5 to 3k Hz, titanium hsg, 4-pin conn.

This accelerometer features low out-gassing construction that is ideal for use in thermal vacuum chambers for environmental testing.

Sensitivity: (±10%)500 mV/g (51 mV/(m/s²))
Measurement Range: ±10 g pk (±98 m/s² pk)
Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	500 mV/g	51 mV/(m/s²)
Measurement Range	±10 g pk	±98 m/s² pk
Frequency Range (±5 %)	0.5 to 3000 Hz	0.5 to 3000 Hz
Frequency Range (±10 %)	0.3 to 4000 Hz	0.3 to 4000 Hz
Resonant Frequency	≥14 kHz	≥14 kHz
Broadband Resolution (1)	0.00006 g rms	0.0006 m/s² rms	[2]
Phase Response (±5 °) (at 70°F [21°C])	2 to 4000 Hz	2 to 4000 Hz
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±5000 g pk	±49000 m/s² pk
Temperature Range (Operating)	-65 to +176 °F	-54 to +80 °C
Temperature Response	See Graph %/°F	See Graph %/°F
Base Strain Sensitivity	0.001 g/µε	0.01 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC	18 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤300 Ohm	≤300 Ohm
Output Bias Voltage	8 to 12 VDC	8 to 12 VDC
Discharge Time Constant	0.8 to 2.0 sec	0.8 to 2.0 sec
Settling Time (within 10% of bias)	<10 sec	<10 sec
Spectral Noise (1 Hz)	18 µg/√Hz	180 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	6 µg/√Hz	60 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	2 µg/√Hz	20 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	0.7 µg/√Hz	7 (µm/sec²)/√Hz	[2]
Spectral Noise (10 kHz)	0.2 µg/√Hz	2 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Height	0.55 in	14.0 mm
Size - Length	0.80 in	20.3 mm
Size - Width	0.55 in	14.0 mm
Weight	0.42 oz	11.8 gm	[2]
Electrical Connector	1/4-28 4-Pin	1/4-28 4-Pin
Electrical Connection Position	Side	Side
Mounting Thread	5-40 Female	5-40 Female
Mounting Torque	4 to 5 in-lb	45 to 56 N-cm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
080A145	Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/isolating hardcoat finish	1
081A27	Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
M081A27	Metric mtg stud, 5-40 to M3 x 0.50 long	1
