ring-style, general purpose, ceramic shear icp® accel., 10 mv/g, 1 to 10k hz, 10-32 side conn.

Accelerometer, ICP®

Model 355B02

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-5 is 6 Wks.
Lead Time for 6-10 is 7 Wks.
  • CE
  • IP

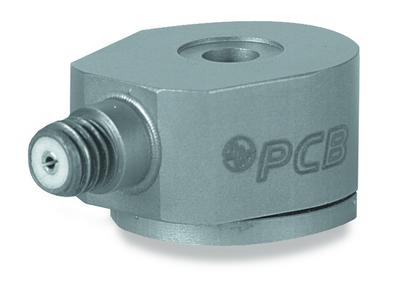

Ring-style, general purpose, ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, 10-32 side conn.

  • Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
  • Frequency Range: (±5%)1 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.35 oz (10 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 1 to 10000 Hz 1 to 10000 Hz
Frequency Range (±10 %) 0.6 to 12000 Hz 0.6 to 12000 Hz
Frequency Range (±3 dB) 0.3 to 17000 Hz 0.3 to 17000 Hz
Resonant Frequency ≥35 kHz ≥35 kHz
Broadband Resolution (1) 0.0005 g rms 0.005 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit ±5000 g pk ±49000 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity 0.05 g/µε 0.49 (m/s²)/µε [2]
Electrical
Excitation Voltage 22 to 30 VDC 22 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 7 to 15 VDC 7 to 15 VDC
Discharge Time Constant 0.5 to 2 sec 0.5 to 2 sec
Settling Time (within 10% of bias) <10 sec <10 sec
Spectral Noise (1 Hz) 90 µg/√Hz 880 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 15 µg/√Hz 147 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 5 µg/√Hz 49 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 3 µg/√Hz 29 (µm/sec2)/√Hz [2]
Electrical Isolation (Base) >100000000 Ohm >100000000 Ohm
Physical
Size - Height 0.40 in 10.2 mm
Size - Length 0.95 in 24.1 mm
Size - Width 0.63 in 16.0 mm
Weight 0.35 oz 10 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Through Hole Through Hole

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
039A22 Allen wrench, 7/64" hex head (for use with 6-32 thd cap screws) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081B45 Off ground socket head cap screw assembly, 6-32 UNC-2A thd., 0.63 length, stainless steel. 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(A) Adhesive Mount
Accessories:
Supplied 080A90 Quick Bonding Gel 1
(M) Metric Mount
Accessories:
Supplied M039A22 Allen wrench for use with M3 thread 1
Supplied M081B45 Accessory for Vibration Division Product 1

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
