PCB's acquisition of Endevco's full line of automotive safety testing sensors means all Endevco sensors are now backed by PCB's Total Customer Satisfaction (TCS) guarantee.

Since the earliest days of vehicle safety testing, Endevco has worked with OEMs, test laboratories and ATD manufacturers' design and test personnel to ensure accurate measurements of front, side and rear impact; crush zones; in-vehicle occupant and pedestrian safety.

Endevco accelerometers were used to create the original safety standard specifications from the U.S. National Highway Traffic Safety Administration (NHSTA). Endevco 7264C Accelerometers are the only accelerometer that meets the NHTSA standard for certification tests. This accelerometer meets SAEJ211 specifications for instrumentation for impact testing and SAEJ2570 specification for anthromorphic testing. 7264C also features an undamped sensor design which meets the NHTSA SA572-S4 requirement of 0.005 damping ratio.

Endevco EuroNCAP compliant solution for pedestrian safety testing, Model 7264H, utilizes a unique and advanced micro-machined piezoresistive sensor which includes multi-mode damping for exceptional bandwidth with no significant resonance response in the usable range.

Endevco was also instrumental in the research and development of now standard safety features such as seat belts, dashboards, steering wheels, and safety door locks.

Applications

  • Pedestrian safety study
  • Frontal, rear and side impact
  • Vehicle roll-over test
  • Global regulatory compliance testing
  • Anthropomorphic Test Device (ATD)
  • Vehicle crush zones and crash sleds

Sensors

Piezoresistive Accelerometers

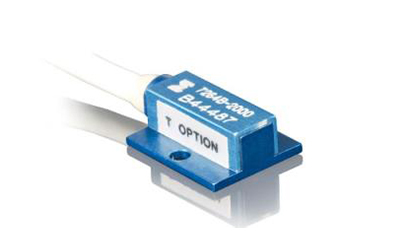

Endevco model 7264B
Endevco Model 7264B

Undamped accelerometer with center CG location

ATD

Download Datasheet

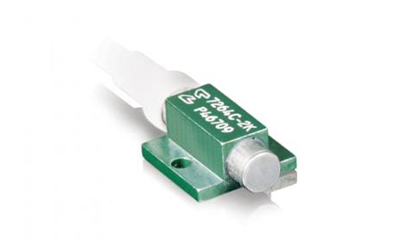

Endevco model 7264C
Endevco Model 7264C

Undamped accelerometer

ATD

Download Datasheet

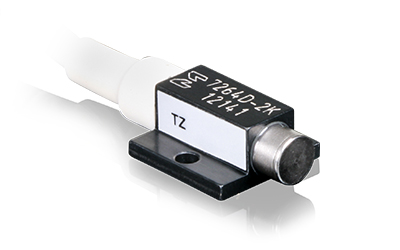

Endevco model 7264D
Endevco Model 7264D

Low mass undamped accelerometer

ATD

Download Datasheet

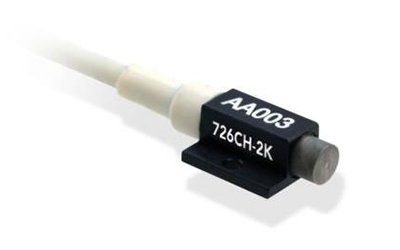

Endevco model 726CH
Endevco Model 726CH

High sensitivity accelerometer with multi-mode damping

ATD & On-vehicle crash

Download Datasheet

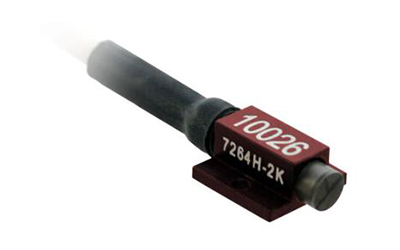

Endevco model 7264H
Endevco Model 7264H

Accelerometer with multi-mode damping

ATD & Pedestrian Safety

Download Datasheet
Endevco model 7268C
Endevco Model 7268C

Triaxial undamped accelerometer

ATD

Download Datasheet

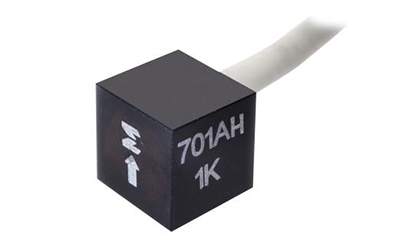

Endevco model 701AH / 701FH
Endevco Model 701AH / 701FH

Multi- mode damping, rugged Al housing

On-vehicle crash

Download Datasheet

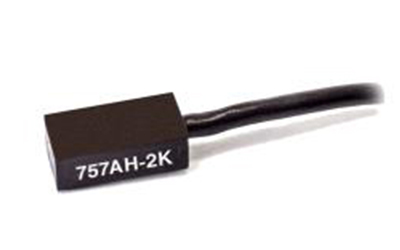

Endevco model 757AH / 757FH
Endevco Model 757AH / 757FH

Small, lightweight, multi- mode damping

On-vehicle crash, side impact testing

Download Datasheet

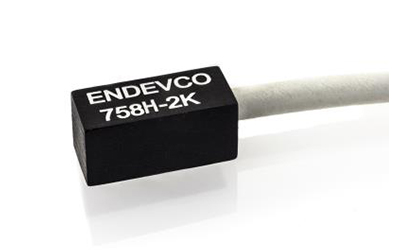

Endevco model 758H
Endevco Model 758H

Multi- mode damping, designed for multiple mounting surfaces

On-vehicle crash

Download Datasheet

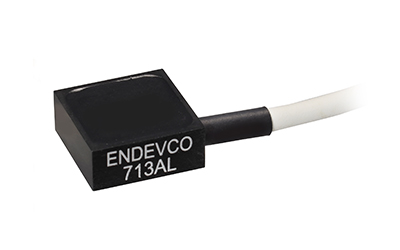

Endevco model 713AL / 713FL
Endevco Model 713AL / 713FL

Triaxial, high sensitivity accelerometer with multi-mode damping

On-vehicle crash

Download Datasheet


Piezoresistive Pressure Sensors

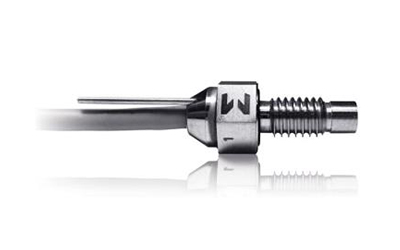

Endevco model 8510B
Endevco Model 8510B

High sensitivity, gage, 10-32 thread

Airbag & ABS testing

Download Datasheet

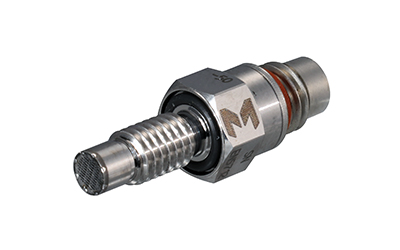

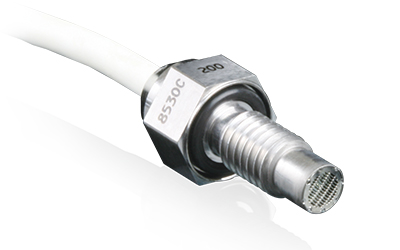

Endevco model 8530C
Endevco Model 8530C

High resonance, absolute, 10-32 thread

Side impact testing

Download Datasheet

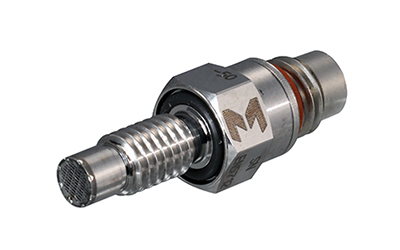

Endevco model 8530BM37
Endevco Model 8530BM37

High sensitivity, absolute, 10-32 thread

Airbag & ABS testing

Download Datasheet


Angular Rate and 6DoF Sensors

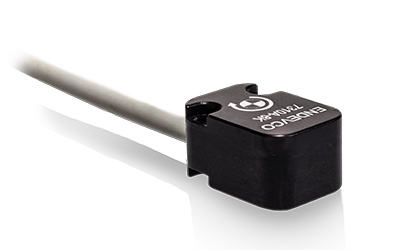

Endevco model 7310A
Endevco Model 7310A

Angular rate sensor

Automotive safety and ATD

Download Datasheet

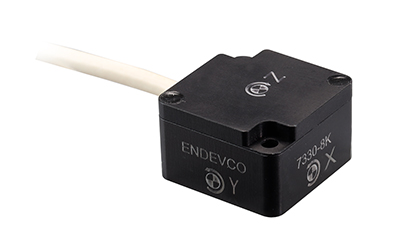

Endevco model 7330
Endevco Model 7330

Triaxial angular rate sensor

Automotive testing requiring pitch, roll and yaw measurement, ATD

Download Datasheet

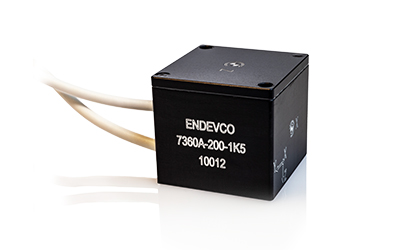

Endevco model 7360A
Endevco Model 7360A

Six degrees of freedom (6DoF) sensor

Vehicle dynamics, Automotive rollover

Download Datasheet


Choose our sensors for your automotive safety testing needs

To discuss specific applications, please contact us or request a quote.
