New 4 Channel ICP^® Signal Conditioner

Model 482C24 provides added application flexibility

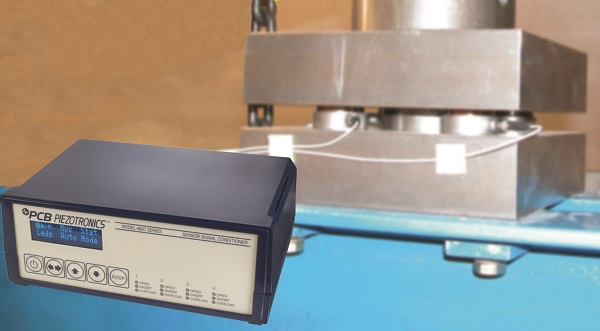

PCB^® 4 channel signal conditioner (Model 382C24)

March 2, 2016, Depew, New York - PCB Piezotronics Inc. expands the 482C signal conditioner series with the introduction of Model 482C24. This 4-channel conditioner includes DC coupling that is selectable on a per channel basis. It is ideal for use with ICP^® force, and pressure sensors that have long discharge time constants allowing temporary measurements down to 0 Hz. An auto-zero function automatically negates any DC bias.

A clamped output feature (when AC coupled), used in repetitive force applications such as stamping and press monitoring, provides a positive-only signal that electronically re-zeros each pulse before the next cycle.

Additional features include a front panel keypad and display, incremental gain from x0.1 to x200, TEDS support and an RS-232 port for computer control through PCB^® supplied software. Model 482C24 will power any ICP^® sensor and is suitable for dynamic measurements up to 100 kHz.

Model 482C24 is a stock item and available for immediate shipment. For additional information, contact Mike Lindstrom, Product Manager, at (800) 828-8840, x-2108 or email at mlindstrom@pcb.com.
