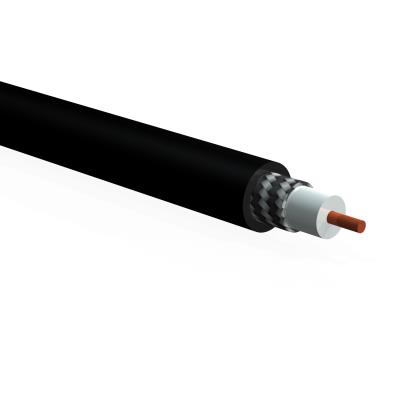

general purpose, coaxial, 20 awg, black pvc cable (rg58/u), cmx flame rated (price per foot)

Low Cost Coaxial Cable

Model 012

  • IP

general purpose, coaxial, 20 awg, black PVC cable (RG58/U), CMX flame rated (price per foot)

  • Cable Style: Coaxial
  • Number of Conductors: 1
  • Cable Jacket Material: PVC
  • Temperature Range: -40 to +176 °F (-40 to +80 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 1 1
Cable Style (RG-58/U) Coaxial Coaxial
Environmental
Temperature Range -40 to +176 °F -40 to +80 °C
Electrical
Impedance 52 Ohm 52 Ohm [1]
Capacitance (conductor to conductor @ 70 °F (21 °C)) 29 pF/ft 95 pF/m
Physical
Cable Jacket Diameter .193 in 4.9 mm [1]
Cable Jacket Material PVC PVC
Cable Jacket Color Black Black
Conductor Style Solid Solid
Conductor Material Copper Copper
Conductor Diameter (20 AWG) 0.033 in .838 mm [1]
Insulation Material Over Conductor(s) Polyethylene Polyethylene
Shield Type Over Conductor(s) Braid: 95% Minimum Coverage Braid: 95% Minimum Coverage
Shield Material Over Conductor(s) Tinned Copper Tinned Copper
Shield Wire Diameter Over Conductor(s) .137 in 3.48 mm [1]
Bend Radius (minimum) 2 in 50 mm
Weight .48 oz/ft 41.6 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
