triaxial, general purpose, ceramic shear icp® accel., 10 mv/g, 1 to 5k hz, 14 mm cube size, 4-pin conn., teds 1.0

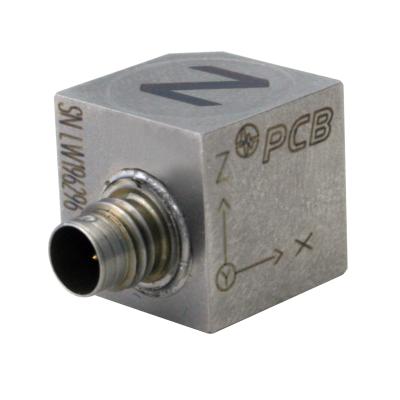

Accelerometer, ICP®, Triaxial

Model TLD356A02

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-10 is 7 Wks.
Lead Time for 11-20 is 9 Wks.
  • CE
  • IP

Triaxial, general purpose, ceramic shear ICP® accel., 10 mV/g, 1 to 5k Hz, 14 mm cube size, 4-pin conn., TEDS 1.0

  • Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] TEDS option adds 1.0 VDC to bias voltage.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 1 to 5000 Hz 1 to 5000 Hz
Frequency Range (±10 %) 0.5 to 6000 Hz 0.5 to 6000 Hz
Resonant Frequency ≥25 kHz ≥25 kHz
Broadband Resolution (1) 0.0005 g rms 0.005 m/s² rms [2]
Non-Linearity (400 g, 3920 m/s²) ≤1 % ≤1 % [1]
Non-Linearity (500 g, 4900 m/s²) ≤2 % ≤2 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±7000 g pk ±68600 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Base Strain Sensitivity 0.001 g/µε 0.01 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.6 to 2.0 sec 0.6 to 2.0 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 150 µg/√Hz 1472 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 25 µg/√Hz 245 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 10 µg/√Hz 98 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 5 µg/√Hz 49 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.37 oz 10.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 10 to 20 in-lb 113 to 225 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A12 Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insolation hardcoat finish 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(HT) High temperature, extends normal operation temperatures

English SI
Excitation Voltage 22 to 30 VDC
Discharge Time Constant 0.5 to 1.5 sec
Temperature Range -65 to +325 °F -54 to +163 °C
Spectral Noise 400 µg/√Hz 3920 (µm/sec2)/√Hz
Broadband Resolution 0.0008 g rms 0.008 µm/sec2 rms
Frequency Range (&#177;10 %) 0.7 to 6000 Hz
Spectral Noise 50 µg/√Hz 490 (µm/sec2)/√Hz
Frequency Range (&#177;5 %) 1 to 5000 Hz
Spectral Noise 25 µg/√Hz 245 (µm/sec2)/√Hz
Output Bias Voltage 7 to 15 VDC
Spectral Noise 6 µg/√Hz 58.8 (µm/sec2)/√Hz

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 8.5 to 13.0 VDC
Temperature Range -65 to +250 °F -54 to +121 °C

(TLA) TEDS LMS International - Free Format

English SI
Temperature Range -65 to +250 °F -54 to +121 °C
Output Bias Voltage 8.5 to 13.0 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Temperature Range -65 to +250 °F -54 to +121 °C
Output Bias Voltage 8.5 to 13.0 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Temperature Range -65 to +250 °F -54 to +121 °C
Output Bias Voltage 8.5 to 13.0 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Temperature Range -65 to +250 -54 to +121
Output Bias Voltage 8.5 to 13.0
