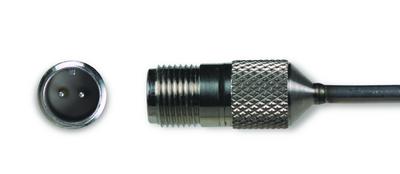

2-pin 7/16-27 uns-2a jack, 900f operating temperature (for 013 hardline cable) **not field installable**

CABLE CONNECTOR

Model GP

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

2-pin 7/16-27 UNS-2A jack, 900F operating temperature (for 013 hardline cable) **Not field installable**

***Maximum cable length is 33ft (10m)***

Replaces Legacy Model Endevco 6918MX
  • Connector Style: Multi-conductor
  • Connection Type: 2-pin
  • Connection Type: Plug (male pin)
  • Temperature Range: -65 to 900 °F (-54 to 482 °C)

Specification Notes


[1] When used with 013 cable

English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 2-pin 2-pin
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Environmental
Temperature Range -65 to 900 °F -54 to 482 °C
Radiation Exposure Limit (Integrated Neutron Flux) 1 E10 N/cm² 1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1 E8 rad 1 E8 rad
Physical
Size - OD 0.46 in 12 mm
Size - Length 1.2 in 30 mm
Weight 0.42 oz 12 gm
Sealing Hermetic Hermetic [1]

* All specifications are at room temperature unless otherwise specified.
