pcb l&t torque sensor, rotary transformer, shaft to shaft, 2k in-lb capacity fs, 15k rpm max., ms conn.

Rotary Transformer Torque Sensor

Model 4104-03A

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

PCB L&T Torque Sensor, Rotary Transformer, Shaft to Shaft, 2k in-lb Capacity FS, 15k RPM Max., MS Conn.

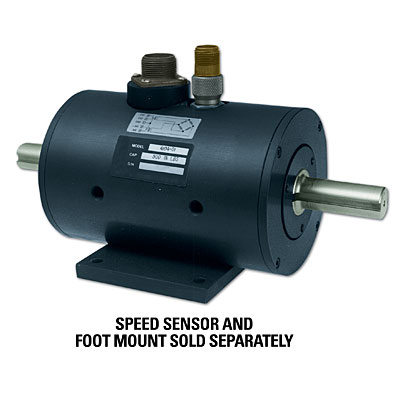

Speed sensor and foot mount sold separately.


Cable: 8310-06-xxA and 8310-03-xxA

  • Measurement Range: 2000 in-lb (226 Nm)
  • Sensitivity: 2.5 mV/V (2.5 mV/V)
  • Non-Linearity: <=0.05 % FS
  • Mounting: 1.00 in Dia. Keyed Shaft (25.4 mm Dia. Keyed Shaft)
  • Maximum Speed: 15000 RPM

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] Over compensated operating temperature range.
[1] Nominal.
[2] FS - Full Scale.
[4] Recommended 10 VAC RMS.
[5] See Outline Drawing 28581 for Complete Dimensions
[6] See PCB Declaration of Conformance PS062 for details.

English: SI:
Performance
Measurement Range (Full Scale Capacity) 2000 in-lb 226 Nm [1]
Sensitivity (output at rated capacity) 2.5 mV/V 2.5 mV/V [1] [2]
Non-Linearity ≤0.05 % FS ≤0.05 % FS [2]
Hysteresis ≤0.05 % FS ≤0.05 % FS [2]
Non-Repeatability ≤0.02 % FS ≤0.02 % FS [2]
Environmental
Overload Limit 3000 in-lb 340 Nm
Temperature Range (Operating) -65 to 170 °F -54 to 77 °C
Temperature Range (Compensated) +70 to +170 °F +21 to 77 °C
Temperature Effect on Output (Maximum) ±.002 %Reading/°F ±.0036 %Reading/°C [3]
Temperature Effect on Zero Balance (Maximum) ±.002 %FS/°F ±.0036 %FS/°C [2] [3]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [1]
Excitation Frequency 3.28 kHz 3.28 kHz
Excitation Voltage 2 to 10 VAC rms 2 to 10 VAC rms [4]
Bridge Current (at 5 VAC) 50 mA 50 mA
Insulation Resistance >5000000 kohm >5000000 kohm
Zero Balance ≤2 % FS ≤2 % FS [2]
Physical
Size - Shaft Length 10.00 in 254.0 mm [5]
Size - Housing Length 6.00 in 152.4 mm
Size - Housing Height 4.00 in 101.6 mm
Weight 18 lb 8.2 kg
Mounting 1.00 in Dia. Keyed Shaft 25.4 mm Dia. Keyed Shaft
Sensing Element Strain Gage Strain Gage
Housing Material Black Oxided Steel Black Oxided Steel
Shaft Material Steel Steel
Electrical Connector MS3102A-14S-5P MS3102A-14S-5P
Torsional Stiffness 150000 in-lb/radian 16.9 kN-m/radian
Rotating Inertia 0.0026 in-lb-sec2 0.0003 N-m-sec2
Maximum Speed 15000 RPM 15000 RPM

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
180-019A Mating conn., 5-socket (F) (for Series 3100, 4100 & 4200) 1
8113-105A Relay activated precision shunt calibration module 1

Build Out Your Measurement Chain
