miniature (4 gm), charge output accel., 5 pc/g, 0.40-inch cube, 10-32 side conn.

Accelerometer, Charge Output

Model 357B40

Add to Quote
  • CE
  • IP

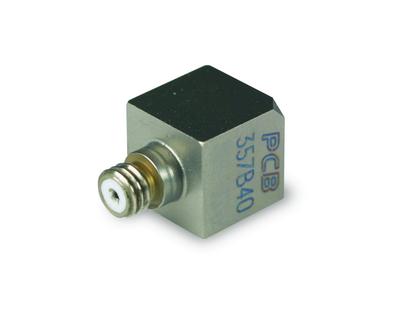

Miniature (4 gm), charge output accel., 5 pC/g, 0.40-inch cube, 10-32 side conn.

  • Sensitivity: (±20%)5.0 pC/g (0.51 pC/(m/s²))
  • Measurement Range: ±1000 g pk (±9810 m/s² pk)
  • Frequency Range: (+5%)10000 Hz
  • Weight: 0.15 oz (4.3 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±20 %) 5.0 pC/g 0.51 pC/(m/s²)
Measurement Range ±1000 g pk ±9810 m/s² pk
Frequency Range (+5 %) 10000 Hz 10000 Hz [2]
Frequency Range (+10 %) 13000 Hz 13000 Hz [2]
Resonant Frequency ≥40 kHz ≥40 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range -65 to +495 °F -54 to +257 °C
Temperature Response See Graph %/°F See Graph %/°F [3]
Base Strain Sensitivity 0.01 g/µε 0.1 (m/s²)/µε [3]
Electrical
Capacitance 680 pF 680 pF [3]
Insulation Resistance (at 495°F [257°C]) >10000000 Ohm >10000000 Ohm [3]
Insulation Resistance (at 70° F [21°C]) >1000000000000 Ohm >1000000000000 Ohm
Output Polarity Negative Negative
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.4 in 10.2 mm
Size - Length 0.63 in 16 mm
Size - Width 0.4 in 10.2 mm
Weight 0.15 oz 4.3 gm [3]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 5-40 Female 5-40 Female
Mounting Torque 4 to 5 in-lb 45 to 56 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
