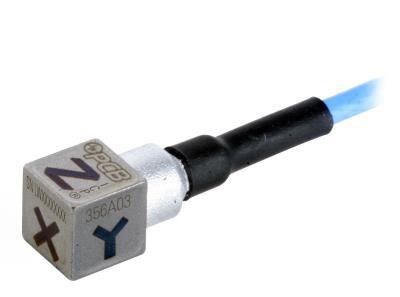

Triaxial ICP® Accelerometer

Model 356A03/NC

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
2	Lead Time for 1-10 is 6 Wks. Lead Time for 11-20 is 8 Wks.

Platinum Stock Products; Triaxial, lightweight miniature, ceramic shear ICP® accel., 10 mV/g, 0.25" cube, no extension cable provided

Sensitivity: (±20%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4905 m/s² pk)
Electrical Connector: Integral Cable

Additional configurations:

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±20 %)	10 mV/g	1.02 mV/(m/s²)
Measurement Range	±500 g pk	±4905 m/s² pk
Frequency Range (±5 %) (y or z axis)	2 to 8000 Hz	2 to 8000 Hz
Frequency Range (±5 %) (x axis)	2 to 5000 Hz	2 to 5000 Hz
Frequency Range (+1 dB) (x axis)	≥8 kHz	≥8 kHz
Resonant Frequency	≥50 kHz	≥50 kHz
Broadband Resolution (1)	0.003 g rms	0.03 m/s² rms	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±5000 g pk	±49050 m/s² pk
Temperature Range (Operating)	-65 to +250 °F	-54 to +121 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[2]
Electrical
Excitation Voltage	22 to 30 VDC	22 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	9 to 16 VDC	9 to 16 VDC
Discharge Time Constant	0.24 to 1.0 sec	0.24 to 1.0 sec
Settling Time (within 10% of bias)	<3 sec	<3 sec
Spectral Noise (1 Hz)	1200 µg/√Hz	11772 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	300 µg/√Hz	2943 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	100 µg/√Hz	981 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	30 µg/√Hz	294 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Height	0.25 in	6.35 mm
Size - Length	0.25 in	6.35 mm
Size - Width	0.25 in	6.35 mm
Weight (without cable)	0.04 oz	1.0 gm	[2]
Electrical Connector	Integral Cable	Integral Cable
Electrical Connection Position	Side	Side
Cable Termination	1/4-28 4-Pin Jack	1/4-28 4-Pin Jack
Cable Length	5 ft	1.5 m
Cable Type	034 4-cond Shielded	034 4-cond Shielded
Mounting	Adhesive	Adhesive

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
034G05	4-conductor, low noise, shielded FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)	1
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
080A90	Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces)	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
