penetration icp® force sensor, 100 lb comp., 50 mv/lb, integral hemispherical cap

Force Sensor, ICP®

Model 208A22

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

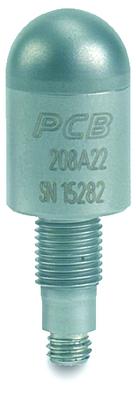

Penetration ICP® force sensor, 100 lb comp., 50 mV/lb, integral hemispherical cap

  • Measurement Range: 100 lb (0.4448 kN)
  • Sensitivity: (±15%)50 mV/lb (11241 mV/kN)
  • Low Frequency Response: (-5%)0.003 Hz
  • Upper Frequency Limit: 18000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: No English Equivalent (M7 x 0.75 Male)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[2] Typical.

English: SI:
Performance
Sensitivity (±15 %) 50 mV/lb 11241 mV/kN
Measurement Range (Compression) 100 lb 0.4448 kN
Maximum Static Force (Compression) 600 lb 2.669 kN
Broadband Resolution (1) 0.002 lb-rms 0.008896 N-rms [2]
Low Frequency Response (-5 %) 0.003 Hz 0.003 Hz [3]
Upper Frequency Limit 18000 Hz 18000 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥200 sec ≥200 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Output Polarity (Compression) Positive Positive
Physical
Stiffness 5 lb/µin 0.88 kN/µm [2]
Size - Diameter 0.500 in 12.7 mm
Size - Length 1.410 in 35.8 mm
Weight 0.53 oz 15 gm
Housing Material Stainless Steel Stainless Steel
Impact Tip Material Titanium Titanium
Sealing O-Ring O-Ring
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Axial Axial
Mounting Thread No English Equivalent M7 x 0.75 Male

* All specifications are at room temperature unless otherwise specified.
