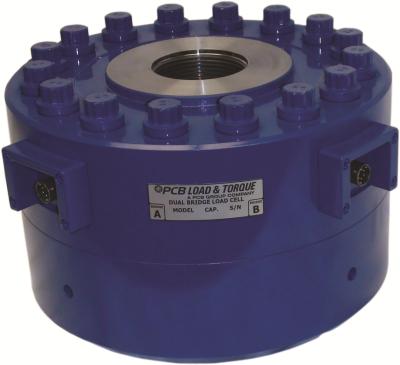

dual bridge load cell, fatigue rated low profile, 100k lb fs, 2 3/4-8 (f) thd, pt conn. with tension load base

FATIGUE RATED LOW PROFILE LOAD CELL, DUAL BRIDGE

Model 1411-02ADB

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Dual bridge load cell, fatigue rated low profile, 100k lb FS, 2 3/4-8 (F) thd, PT conn. with tension load base

  • Measurement Range: 100 klb (445 kN)
  • Size - Diameter: 11.00 in (279.40 mm)
  • Size - Height: 7.00 in (177.80 mm)
  • Electrical Connector: PT02E-10-6P (2)

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] RO - Rated Output.
[4] Calibrated in tension and compression.
[5] Singularly applied, i.e. no other extraneous loads.
[6] Over compensated operating temperature range.
[1] Nominal.
[7] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[8] See Outline Drawing 51434 for Complete Dimensions

English: SI:
Performance
Measurement Range (100 x 10^6 cycles) 100 klb 445 kN [2] [4]
Sensitivity (±10 %) (Rated Output) 2.0 mV/V 2.0 mV/V [1] [3]
Non-Linearity ≤0.06 % FS ≤0.06 % FS
Hysteresis ≤0.06 % FS ≤0.06 % FS
Non-Repeatability ≤0.02 % FS ≤0.02 % FS
Creep (in 20 minutes) 0.025 % 0.025 %
Static Error Band ≤0.06 % FS ≤0.06 % FS [2]
Eccentric Load Sensitivity ≤0.1 %/in ≤0.1 %/25.4mm
Resonant Frequency 18 kHz 18 kHz
Side Load Sensitivity ≤0.1 %/in ≤0.1 %/25.4mm
Environmental
Overload Limit 300 klb 1335 kN
Load Limit (Side Force, FX or FY) 100 klb 445 kN [5]
Load Limit (Bending Moment, MX or MY) 100k lbf-in 11.3k Nm [5]
Load Limit (Axial Torque, MZ) 100k lbf-in 11.3k Nm [5]
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +15 to +115 °F -9 to +46 °C
Temperature Effect on Output (Maximum) ±0.0008 %Reading/°F ±0.0018 %Reading/°C [6]
Temperature Effect on Zero Balance (Maximum) ±0.0008 %FS/°F ±0.0018 %FS/°C [6]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [1]
Excitation Voltage (Recommended) 10 VDC 10 VDC [7]
Insulation Resistance ≥5k GOhm ≥5k GOhm
Zero Balance ≤1 % FS ≤1 % FS
Output Polarity +Tension +Tension
Physical
Size - Height 7.00 in 177.80 mm [8]
Size - Diameter 11.00 in 279.40 mm [8]
Weight 135 lb 61.3 kg
Mounting Thread 2 3/4 - 8 UN-3B No Metric Equivalent
Sensing Element Strain Gage Strain Gage
Mounting Torque 6000 lbf-in 678 Nm
Deflection at Full Scale Capacity 0.001 in 0.03 mm
Electrical Connector PT02E-10-6P (2) PT02E-10-6P (2)

* All specifications are at room temperature unless otherwise specified.

Accessories
Optional
084A40 Side lifting eye bolt for model 1411-02ADB 1
084A41 Center lifting eyebolt & plug for model 1411-02ADB 1
084A58 Load cell thread pre-tensioner 2 3/4-8 1
084A59 Load cell thread pre-tensioner/ adapter for 1408 and 1411 series load cells. 1
181-012A Mating conn., 6-socket (F) w/strain relief for sensors with PT conn. PT06A-10-6S (SR) 1
8311-01-10A 4-conductor, PT06A-10-6S to pigtails cable, 10-ft, for Reaction Torque and Load Cells with PT connector (& 8162 Series), <20 ft 1
