rod end load cell, 5k lbf (22.2 kn) rated capacity, 50% static overload protection, 1-14 male & female thread, steel construction

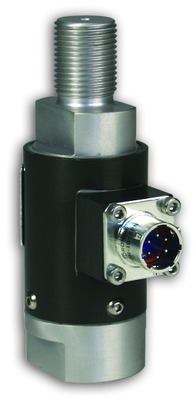

rod end load cell

Model 1381-01A

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-5 is 20 Dys.
  • IP

Rod End Load Cell, 5k lbf (22.2 kN) rated capacity, 50% static overload protection, 1-14 male & female thread, steel construction

Cable <20ft: 8311-04-xxA, 8311-17-xxA and 8311-01-xxA

Cable >=20ft: 8311-05-xxA, 8311-18-xxA and 8311-02-xxA

  • Measurement Range: 5000 lbf (22 kN)
  • Size - Diameter: 1.50 in (38.1 mm)
  • Size - Height: 4.50 in (114.3 mm)
  • Electrical Connector: PT02E-10-6P

Specification Notes

[1] FS - Full Scale.
[2] RO - Rated Output.
[3] Singularly applied, i.e. no other extraneous loads.
[4] Over compensated operating temperature range.
[5] Nominal.
[6] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[7] See Outline Drawing 45728 for complete dimensions.

English: SI:
Performance
Measurement Range 5000 lbf 22 kN [1]
Sensitivity (±10 %) 2 mV/V 2 mV/V [2]
Non-Linearity ≤0.25 % FS ≤0.25 % FS
Hysteresis ≤0.15 % FS ≤0.15 % FS
Non-Repeatability ≤0.05 %RO ≤0.05 %RO
Resonant Frequency 10 kHz 10 kHz
Environmental
Overload Limit 7500 lbf 33 kN
Load Limit (Side Force, FX or FY) 800 lbf 3559 N [3]
Load Limit (Bending Moment, MX or MY) 2500 inf-lb 282 Nm [3]
Load Limit (Axial Torque, MZ) 1900 inf-lb 214 Nm [3]
Temperature Range (Operating) -20 to +200 °F -28 to +93 °C
Temperature Range (Compensated) +70 to +170 °F +21 to +77 °C
Temperature Effect on Output (Maximum) ±0.01 %Reading/°F ±0.018 %Reading/°C [4]
Temperature Effect on Zero Balance (Maximum) ±0.005 %FS/°F ±0.009 %FS/°C [4]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [5]
Excitation Voltage (Recommended) 10 VDC 10 VDC [6]
Insulation Resistance >5000000000 Ohm >5000000000 Ohm
Zero Balance ≤1 % FS ≤1 % FS
Output Polarity Positive Positive
Output Polarity +Tension +Tension
Physical
Size - Height 4.50 in 114.3 mm [7]
Size - Diameter 1.50 in 38.1 mm [7]
Weight 1.1 lb 500 g
Mounting Thread 1 - 14 Male No Metric Equivalent
Mounting Thread 1 - 14 Female No Metric Equivalent
Cover Material Anodized Aluminum Anodized Aluminum
Sensing Element Strain Gage Strain Gage
Deflection at Full Scale Capacity 0.0009 in 0.023 mm
Electrical Connector PT02E-10-6P PT02E-10-6P

* All specifications are at room temperature unless otherwise specified.

Accessories
Optional
181-012A Mating conn., 6-socket (F) w/strain relief for sensors with PT conn. PT06A-10-6S (SR) 1
8311-01-10A 4-conductor, PT06A-10-6S to pigtails cable, 10-ft, for Reaction Torque and Load Cells with PT connector (& 8162 Series), <20 ft 1
