pcb l&t canister load cell, 200 lbf (890 n) rated capacity, 50% static overload protection, 2mv/v output, 1/4-28 unf-2b threads, pt02e-10-6p connector, aluminum construction

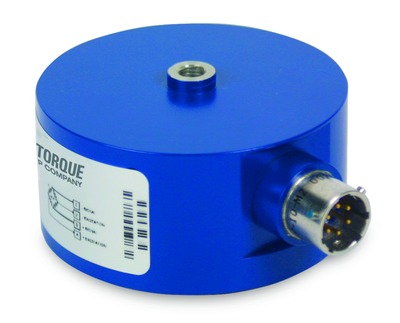

Strain Gage Load Cell

Model 1102-03A

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-1 is 4 Wks.
  • IP

PCB L&T Canister load cell, 200 lbf (890 N) rated capacity, 50% static overload protection, 2mV/V output, 1/4-28 UNF-2B threads, PT02E-10-6P connector, aluminum construction

Cable <20ft: 8311-04-xxA, 8311-17-xxA and 8311-01-xxA

Cable >=20ft: 8311-05-xxA, 8311-18-xxA and 8311-02-xxA

  • Measurement Range: 200 lb (890 N)
  • Size - Diameter: 2.75 in (69.9 mm)
  • Size - Height: 1.5 in (38.1 mm)
  • Electrical Connector: PT02E-10-6P

Specification Notes

[1] FS - Full Scale.
[2] RO - Rated Output.
[3] Singularly applied, i.e. no other extraneous loads.
[4] Over compensated operating temperature range.
[5] Nominal.
[6] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[7] See Outline Drawing 51277 for Complete Dimensions

English: SI:
Performance
Measurement Range 200 lb 890 N [1]
Sensitivity (±10 %) 2 mV/V 2 mV/V [2]
Non-Linearity ≤0.05 % FS ≤0.05 % FS
Hysteresis ≤0.05 % FS ≤0.05 % FS
Non-Repeatability ≤0.02 % FS ≤0.02 % FS
Creep (in 20 minutes) ≤.025 % ≤.025 %
Static Error Band ≤.05 % FS ≤.05 % FS
Eccentric Load Sensitivity ≤.25 %/in ≤.25 %/25.4mm
Resonant Frequency 5.4 kHz 5.4 kHz
Environmental
Overload Limit 300 lb 1334 N
Load Limit (Side Force, FX or FY) 200 lb 890 N [3]
Load Limit (Bending Moment, MX or MY) 200 in-lb 23 Nm [3]
Load Limit (Axial Torque, MZ) 65 in-lb 7 Nm [3]
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +70 to +170 °F +21 to +77 °C
Temperature Effect on Output (Maximum) ±0.0015 %Reading/°F ±0.0027 %Reading/°C [4]
Temperature Effect on Zero Balance (Maximum) ±0.0008 %FS/°F ±0.0015 %FS/°C [4]
Electrical
Bridge Resistance 700 Ohm 700 Ohm [5]
Excitation Voltage (Recommended) 10 VDC 10 VDC [6]
Insulation Resistance >5000000000 Ohm >5000000000 Ohm
Zero Balance ≤1 % FS ≤1 % FS
Output Polarity +Tension +Tension
Physical
Size - Height 1.5 in 38.1 mm [7]
Size - Diameter 2.75 in 69.9 mm [7]
Weight 0.67 lb 304 g
Mounting Thread 1/4-28 Female No Metric Equivalent
Housing Material Painted Aluminum Painted Aluminum
Sensing Element Strain Gage Strain Gage
Deflection at Full Scale Capacity 0.003 in 0.08 mm
Electrical Connector PT02E-10-6P PT02E-10-6P

* All specifications are at room temperature unless otherwise specified.

Accessories
Optional
181-012A PT06A-10-6S (SR) 1
8311-01-10A 4-conductor, PT06A-10-6S to pigtails cable, 10-ft, for Reaction Torque and Load Cells with PT connector (& 8162 Series), <20 ft 1
