subminiature icp® pressure sensor, 1 mv/psi, 0.099 dia. diaphragm, 5/16-24 clamp nut

ICP® PRESSURE SENSOR

Model 105C23

Add to Quote
  • CE
  • IP

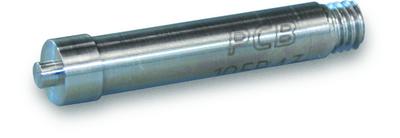

Subminiature ICP® pressure sensor, 1 mV/psi, 0.099" dia. diaphragm, 5/16-24 clamp nut

  • Measurement Range: 5000 psi (35000 kPa)
  • Sensitivity: (±15%)1.0 mV/psi (0.145 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=250 kHz (>=250 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.01 oz (3.0 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 5000 psi 35000 kPa
Sensitivity (±15 %) 1.0 mV/psi 0.145 mV/kPa
Maximum Pressure 7500 psi 51700 kPa
Resolution 0.1 psi 0.69 kPa [2]
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time (Reflected) ≤2.0 µ sec ≤2.0 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤2.0 % FS ≤2.0 % FS [1]
Environmental
Acceleration Sensitivity 0.04 psi/g 0.028 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to +250 °F -73 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Maximum Flash Temperature 3000 °F 1650 °C
Maximum Vibration 1000 g pk 9800 m/s² pk
Maximum Shock 5000 g pk 49000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1.0 sec ≥1.0 sec
Excitation Voltage 22 to 30 VDC 22 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material Stainless Steel Stainless Steel
Diaphragm 17-4 Stainless Steel 17-4 Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.01 oz 3.0 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
060A03 Clamp nut, 5/16-24-2A thd, 1/4" hex, SS (for Series 111, 112 & 113) 1
065A21 3

Optional Versions

(M) Metric Mount
Accessories:
Supplied 060A05 Clamp nut M7 x 0.75-6g thd 1
