subminiature icp® pressure sensor, 10 mv/psi, 0.099 dia. diaphragm, 5/16-24 clamp nut

ICP® PRESSURE SENSOR

Model 105C03

Add to Quote
  • CE
  • IP

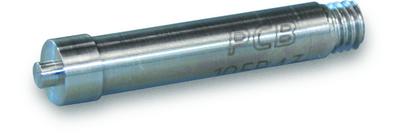

Subminiature ICP® pressure sensor, 10 mV/psi, 0.099" dia. diaphragm, 5/16-24 clamp nut

  • Measurement Range: 100 psi (690 kPa)
  • Sensitivity: (±15%)10 mV/psi (1.45 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=250 kHz (>=250 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.01 oz (3 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Due to high sensitivity, the static pressure should be applied and removed very slowly. Rate should prevent more than 10 Volt change in output until Output Bias Voltage returns to normal (approximately 15 times discharge time constant).
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±1V output) 100 psi 690 kPa
Sensitivity (±15 %) 10 mV/psi 1.45 mV/kPa
Maximum Pressure 7.50 kpsi 51700 kPa [3]
Resolution 0.01 psi 0.069 kPa [2]
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time ≤2.0 µ sec ≤2.0 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤2.0 % FS ≤2.0 % FS [1]
Environmental
Acceleration Sensitivity 0.04 psi/g 0.028 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to +250 °F -73 to +121 °C
Temperature Coefficient of Sensitivity ≤0.05 %/°F ≤0.09 %/°C
Maximum Flash Temperature 3000 °F 1650 °C
Maximum Vibration 1000 g pk 9800 m/s² pk
Maximum Shock 5000 g pk 49000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1.0 sec ≥1.0 sec
Excitation Voltage 24 to 30 VDC 24 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 10 to 15 VDC 10 to 15 VDC
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material Stainless Steel Stainless Steel
Diaphragm 17-4 Stainless Steel 17-4 Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.01 oz 3 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
060A03 Clamp nut, 5/16-24-2A thd, 1/4" hex, SS (for Series 111, 112 & 113) 1
065A21 3

Optional Versions

(M) Metric Mount
Accessories:
Supplied 060A05 Clamp nut M7 x 0.75-6g thd 1
