ICP® Pressure Sensor

Model 102M276

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-5 is 4 Wks.
  • CE
  • IP

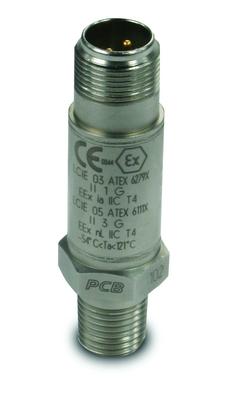

Intrinsic safe ICP pressure sensor, 50 psi, 100 mV/psi, case isolated, 2-pin connector, temp to 275F

  • Measurement Range: 50 psi (344.8 kPa)
  • Sensitivity: (±15%)100 mV/psi (14.5037 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=60 kHz (>=60 kHz)
  • Electrical Connector: 2-Pin MIL-C-5015
  • Weight: 2.7 oz (75.6 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Due to high sensitivity, the static pressure should be applied and removed very slowly. Rate should prevent more than 10 Volt change in output until Output Bias Voltage returns to normal (approximately 15 times discharge time constant).
[2] Typical.
[4] See PCB Declaration of Conformance PS059 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 50 psi 344.8 kPa
Sensitivity (±15 %) 100 mV/psi 14.5037 mV/kPa
Maximum Pressure 8 kpsi 55160 kPa [3]
Resolution 0.5 mpsi 0.003 kPa [2]
Resonant Frequency ≥60 kHz ≥60 kHz
Rise Time (Reflected) ≤4 µ sec ≤4 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤2.0 % FS ≤2.0 % FS [1]
Environmental
Acceleration Sensitivity 0.025 psi/g 0.018 kPa/(m/s²) [2]
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Hazardous Area Approval See Manual See Manual
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1.0 sec ≥1.0 sec
Excitation Voltage 22 to 28 VDC 22 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 10 to 15 VDC 10 to 15 VDC
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material 316L Stainless Steel 316L Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Weight 2.7 oz 75.6 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
