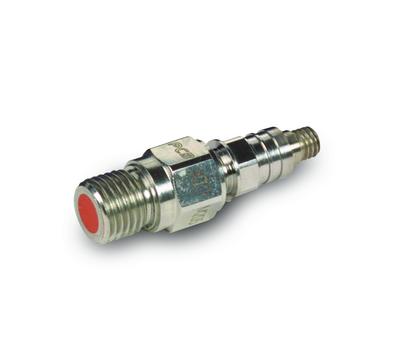

ICP® Pressure Sensor

Model 102M205

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Pressure Sensor ICP® pressure sensor, 100 psi, 50 mV/psi, 3/8-24 mtg thd, accel. comp., ground isolated

  • Measurement Range: 100 psi (689.5 kPa)
  • Sensitivity: (±10mV/psi)50 mV/psi (7.25 mV/kPa)
  • Low Frequency Response: (-5%)0.50 Hz
  • Resonant Frequency: >=250 kHz
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.4 oz (11 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may be limited by output bias.
[2] Typical.
[4] Diaphragm with ablative coating.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 100 psi 689.5 kPa
Useful Overrange (for ± 10V output) 200 psi 1379 kPa [3]
Sensitivity (±10 mV/psi) 50 mV/psi 7.25 mV/kPa
Maximum Pressure 500 psi 3 448 kPa
Resolution 0.4 psi 0.0028 kPa [2]
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time ≤2 µ sec ≤2 µ sec
Low Frequency Response (-5 %) 0.50 Hz 0.50 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Acceleration Sensitivity 0.002 psi/g 0 0014 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to +275 °F -73 to +135 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤.054 %/°C
Maximum Flash Temperature 3000 °F 1 649 °C
Maximum Vibration 2000 g pk 19600 m/s² pk
Maximum Shock 20000 g pk 196000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1 sec ≥1 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Sensing Element Quartz Quartz
Housing Material 17-4 Stainless Steel 17-4 Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel [4]
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.4 oz 11 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1AZ 0
065A44 Seal ring, 0.435" OD x 0.377" ID x 0.030" thk, Cu (for Model 102A10) 3

Optional Versions

(M) Metric Mount
Accessories:
Supplied 065A40 Seal ring 0.435" OD x 0.397" ID x 0.030" thk brass 3
