load cell, torque tension, clamp load rated capacity 300 kn(67.4 klbf), thread torque rated capacity 800 nm (590 ft-lb), 10-pin pt receptacle

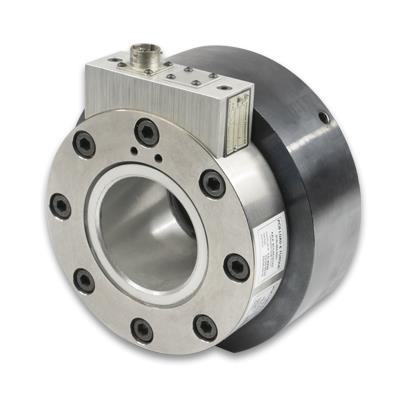

Fastener Torque-Tension Load Cell

Model 059625-01304

  • CE
  • IP

Load Cell, Torque Tension, Clamp Load rated capacity 300 kN(67.4 klbf), Thread Torque rated capacity 800 Nm (590 ft-lb), 10-pin PT Receptacle

For more information on RS Technologies Fastener Testing products and applications, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-testing

To view the RS Technologies Fastener Testing Product Catalog, please visit:
https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Testing_Lowres.pdf
  • Measurement Range: 67.4 lbf (300 kN)
  • Sensitivity: 2.0 mV/V (2.0 mV/V)
  • Size - Height: 9.19 in (233 mm)
  • Electrical Connector: PT02H-12-10P (PT02H-12-10P)

Specification Notes


[1] Nominal.
[2] FS - Full Scale.
[3] Over compensated operating temperature range.
[1] Nominal.
[2] FS - Full Scale.
[4] Recommended 10 VAC RMS.
[5] See Outline Drawing 61662 for Complete Dimensions.
[6] See PCB Declaration of Conformance PS062 for details.

English: SI:
Performance
Measurement Range (Tension) 67.4 lbf 300 kN [1] [2]
Measurement Range (Torque) 590 lbf 800 Nm [1] [2]
Sensitivity (Tension) 2.0 mV/V 2.0 mV/V [1] [2]
Sensitivity (Torque) 1.0 mV/V 1.0 mV/V [1] [2]
Non-Linearity ±0.25 % FS ±0.25 % FS [2]
Hysteresis ±0.25 % FS ±0.25 % FS [2]
Non-Repeatability ≤0.2 % FS ≤0.2 % FS [2]
Cross Talk ±5.0 % FS ±5.0 % FS [2]
Environmental
Overload Limit 150 % FS 150 % FS [2]
Temperature Range (Operating) 0 to +200 °F -18 to +93 °C
Temperature Range (Compensated) +70 to +170 °F +21 to +77 °C
Temperature Effect on Output (Maximum) ±0.001 %Reading/°F ±0.0018 %Reading/°C [3]
Temperature Effect on Zero Balance (Maximum) ±0.001 %FS/°F ±0.0018 %FS/°C [2] [3]
Electrical
Bridge Resistance (Tension) 350 Ohm 350 Ohm [1]
Bridge Resistance (Torque) 350 Ohm 350 Ohm [1]
Excitation Voltage ±10 VDC or VAC rms ±10 VDC or VAC rms [4]
Insulation Resistance >5000 MOhm >5000 MOhm
Zero Balance ≤2 % FS ≤2 % FS [2]
Output Polarity (Compression) Positive Positive
Output Polarity (Thread Torque CW) Positive Positive
Bridge Current (at 10 VDC) 30 mA 30 mA
Physical
Size - Height 9.19 in 233 mm [5]
Size - Width 4.13 in 105 mm
Size - Length 9.00 in 229 mm
Weight 44 lb 20 kg
Mounting 3/8" bolts (2) 10 mm bolts (2) [5]
Housing Material Stainless Steel Stainless Steel
Sensor Material Steel Steel
Sensing Element Strain Gage Strain Gage
Electrical Connector PT02H-12-10P PT02H-12-10P
Stiffness 4059k lbf-ft/radian 5503k N-m/radian

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
7122R-02183A 1
7122R-04352A Precision Cal Resistor 43.575K Ohm 1
72736-01 1
90150-030278 RS Research Head 9600 Series Foot Mount 1
